FlashGBX Configuration File Setup for Chisflash MBCX RTC / MBC5 MAX

FlashGBX Configuration File Setup for Chisflash MBCX RTC / MBC5 MAX

Download the configuration file fc_DMG_ChisMBCMAX_with_S29GL256N(Buffer).txt

https://github.com/moribaka/ChisFlash-MBC5/blob/main/GBX_config/fc_DMG_ChisMBCMAX_with_S29GL256N(Buffer).txt

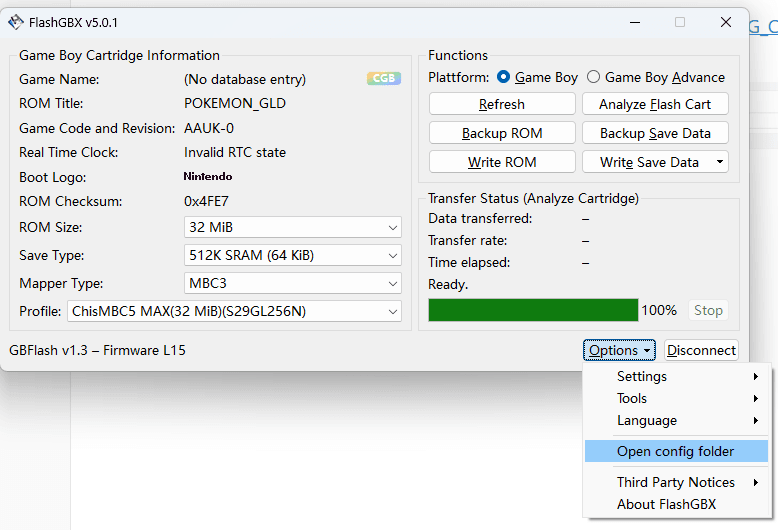

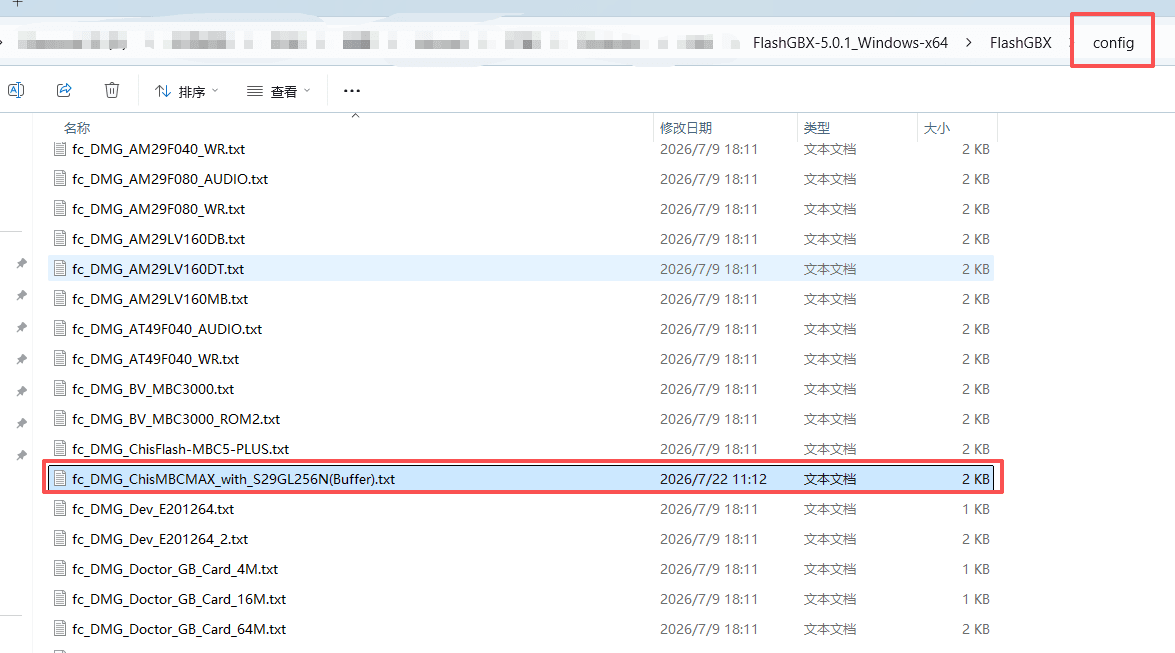

Copy the downloaded TXT file into flashGBX's configuration folder.

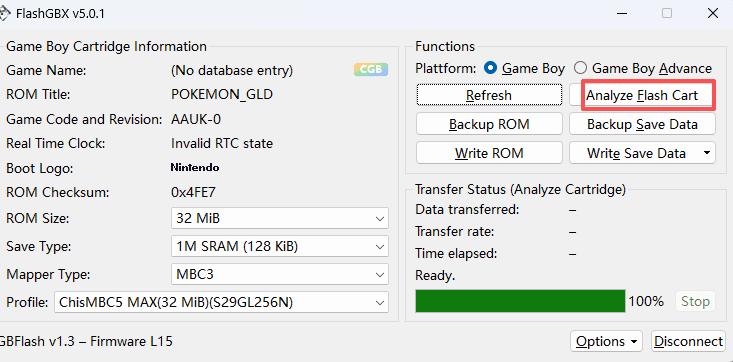

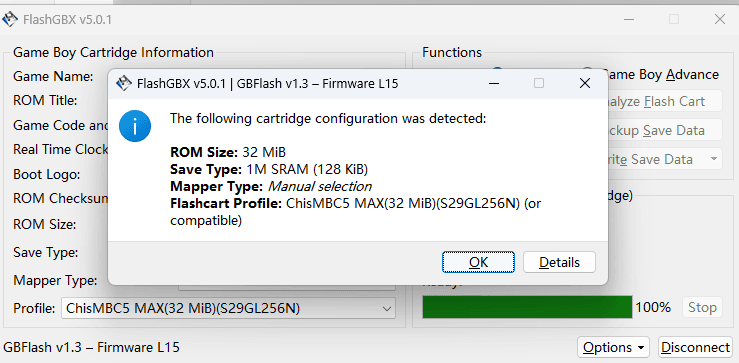

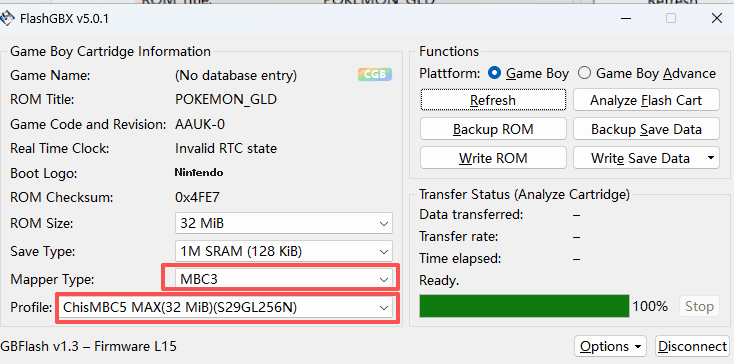

Launch FlashGBX, set Mapper Type to MBC3, and select ChisMBCMAX_with_S29GL256N for Profile.
